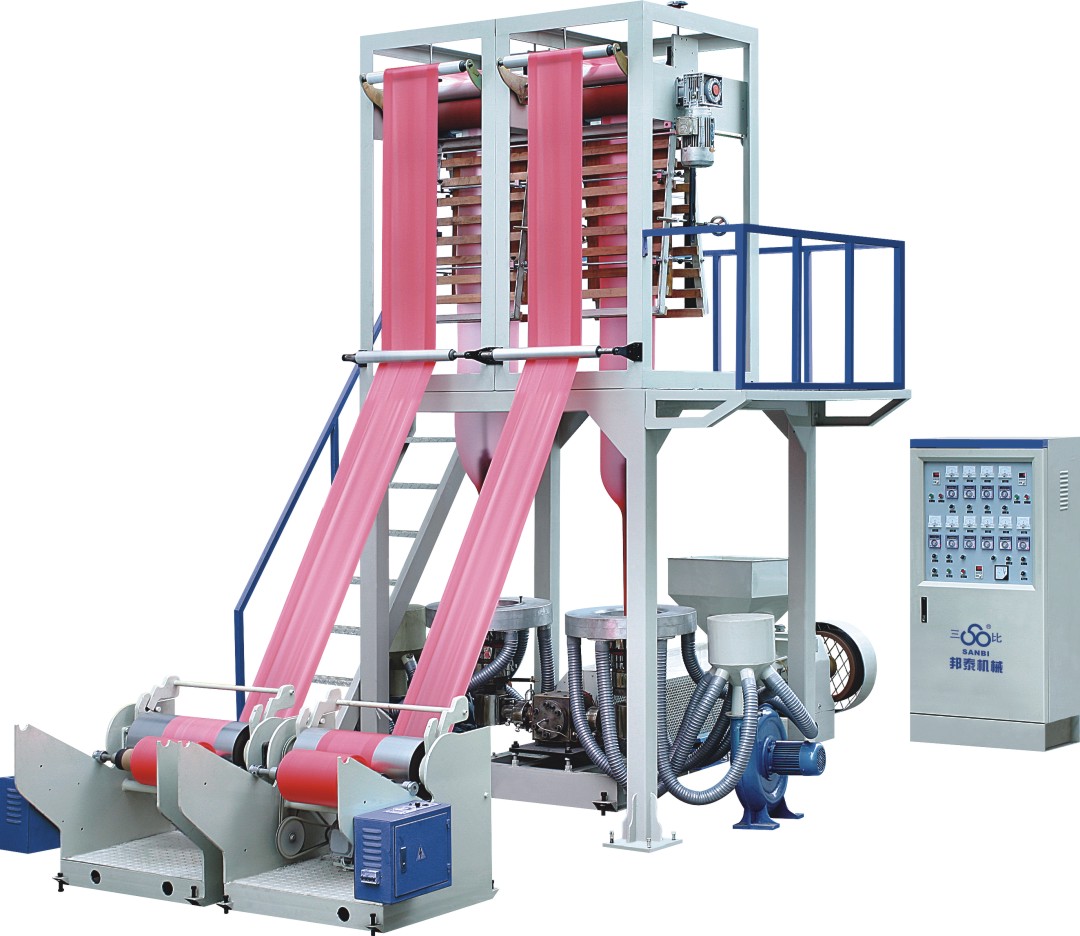

High Speed HDPE LDPE Shopping Bag Garbage Bag Double Die Film Blowing Extruder Machine

Product Description

Double Die HDPE /LDPE Polyethylene Plastic Film Blowing Machine 's screw and barrel  are made of bimetallic, high quality alloy steel through nitrided and precision finishing with the best hardness and corrosion resistance., Scientifically designed, this machine set has two heads for one extruder with such advantages as increasing production capacity, saving energy, labour and workshop area, etc.

This machine set is used for blowing Low-density polyethylene (LDPE) and high- density polyethyene (HDPE) plastic film to make various vest bags and flat bags which have been widely used for packing in the food industry, garment industry and textile industry, etc.

Model	SJ-65FM-600	SJ-75FM-800
Name	Double Die HDPE /LDPE Polyethylene Plastic Film Blowing Machine
Screw Diameter	65mm	75mm
Screw Ratio	28:1	28:1
Screw Speed	10-100r/min	10-100r/min
Max.Output	50kg/h	90Kg/h
Max.Folding Width of Film	550mmx2	800mmx2
Single-sided Thickness of Film	0.01-0.10mm	0.01-0.10mm
Power of Main Motor	22Kw	37Kw
Total Power	40Kw	70Kw
Weight of Machine	3000kg	4500kg
Overall Dimensions	5000x2900x3800	5600x3400x4700
